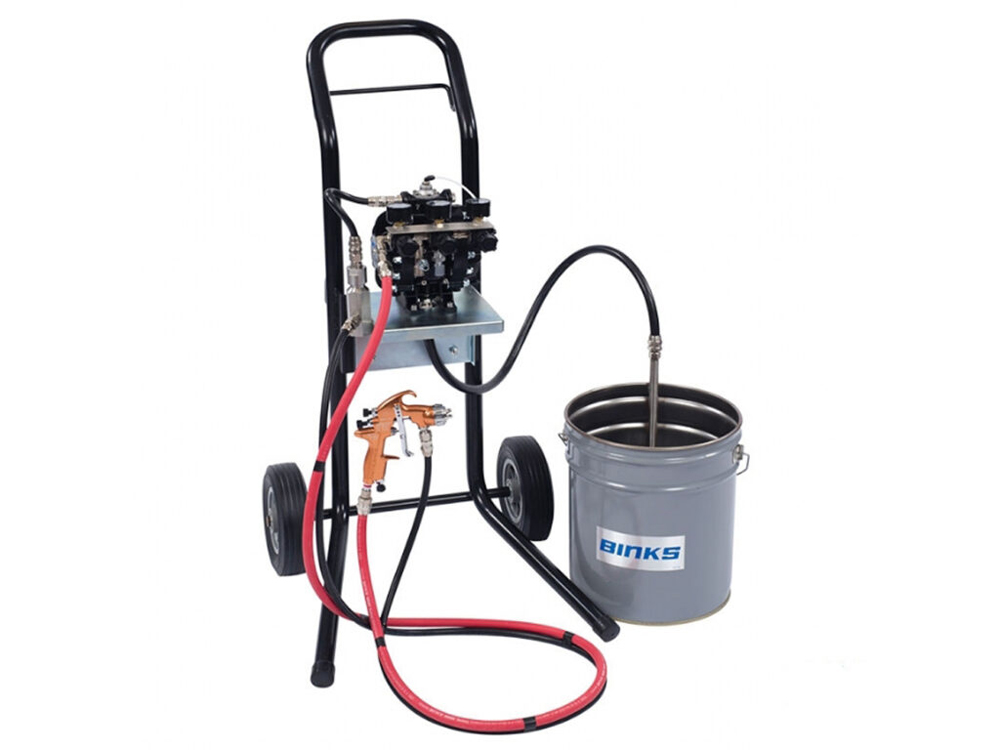

Binks DX70 Ready Assembled Spray Outfit with Advance HD Spray Gun



The Binks DX70 Ready Assembled Spray Outfit is a complete professional pressure feed spraying system designed to deliver consistent, high-quality finishes with maximum efficiency. Featuring the renowned Binks DX70 air-operated double diaphragm pump and supplied complete with the Advance HD Trans-Tech® Spray Gun, this package is ready for installation and use straight away.

The DX70 is a premium 1:1 ratio air-powered double diaphragm pump, engineered to provide a smooth, constant supply of coating material directly to the spray gun. Its unique no-crease diaphragm design offers exceptional durability and long service life, while the integrated fluid regulator delivers virtually pulse-free fluid flow without the need for an additional surge chamber or external fluid regulator.

Compatible with virtually every professional spray gun technology, the DX70 is ideal for workshops and production environments where consistent fluid delivery and superior finish quality are essential.

Key Features

• Complete ready-to-spray pressure feed outfit
• Binks DX70 1:1 air-operated double diaphragm pump
• Built-in fluid regulator for smooth, pulse-free material delivery
• Long-life no-crease diaphragm design
• Consistent fluid pressure for improved finish quality
• Suitable for solvent and water-based coatings
• Compatible with Conventional, Trans-Tech®, HVLP, LVLP and low-pressure electrostatic spray guns
• Professional-grade equipment designed for continuous industrial use

Typical Applications

The DX70 spray outfit is suitable for a wide range of finishing industries, including:

• Woodworking and Joinery
• Aerospace Manufacturing
• Automotive Refinishing
• Commercial Vehicle (Truck & Bus)
• Agricultural and Off-Road Equipment
• Marine Coatings
• Rail and Transport
• Industrial Manufacturing
• Trade Coaters and Job Shops
• Ceramic and Pottery Glazing*
• General Industrial Finishing

*The standard pump version without the integrated fluid regulator can also be used for ceramic glaze applications.

Suitable Coating Materials

Designed to handle a wide variety of industrial coatings, including:

• Solvent-Based Paints
• Water-Based Paints
• Primers and Undercoats
• Lacquers
• Varnishes
• Wood Stains
• Sealers
• Adhesives
• Fillers
• Ceramic Glazes*
• Many other industrial coating materials

Complete Spray Outfit Includes

• Binks DX70 double diaphragm pump
• Three integrated air controls for simple adjustment
• 7.5 metre air hose
• 7.5 metre fluid hose
• Inline fluid filter assembly
• Advance HD Trans-Tech® Gravity Feed Spray Gun
• 1.4mm fluid tip
• 510 Trans-Tech® air cap

Technical Specifications

Specification	Value
Pump Type	Air Operated Double Diaphragm
Pump Ratio	1:1
Maximum Air Pressure	7 Bar (100 PSI)
Maximum Fluid Pressure	7 Bar (100 PSI)
Nominal Fluid Volume per Cycle	0.07 Litres (0.018 US Gallons)
Maximum Fluid Output	4.2 Litres/min (1.1 US Gallons/min) @ 60 cycles/min
Recommended Continuous Cycle Rate	Up to 10 cycles/min
Recommended Intermittent Cycle Rate	Up to 30 cycles/min
Maximum Dry/Wet Suction Lift	6.6 metres (21.8 ft)
Fluid Inlet Connection	3/8″ Universal (BSPP/NPSM) Male or Female
Fluid Outlet Connection	3/8″ Universal (BSPP/NPSM) Male or Female
Air Inlet Connection	G1/4″ (BSPP) Female
Fluid Regulator Connection	Pilot Ø4 Tube
Air Consumption per Cycle	0.77 Litres @ 6.9 Bar (100 PSI)
Air Consumption @ 10 Cycles/min	7.7 Litres/min (0.27 SCFM)
Air Consumption @ 30 Cycles/min	23.2 Litres/min (0.82 SCFM)
Noise Level	68 dB (LAeq)
Electrical Ground Resistance	<10Ω (Air Inlet Cover)
Pump Weight	2.2 kg (4.9 lbs)
